The Basic Parker Twin Filter offers heavy duty FILTER PRESSES for onshore and offshore use. Our Filter Presses are specially designed for completion, work over and gravel pack fluids filtration
The Filter Press can be supplied as a combination unit with a slurry skid, pump skid, powder dosing system and/or duplex cartridge unit and all necessary auxiliaries to run an efficient filtration job
BENEFITS
• Pneumatic operated hydraulic system
• Connections SS316L with O -ring seal for easy and 100%
leak-proof sealing.
• Stainless steel cabinet
• Stainless steel sluice pan
• Available in high flow execution
• Easy to operate
• Low maintenance
APPLICATIONS
• Well Completion fluids
• Work over fluids
• Gravel pack fluids
• Waste water.
OPTIONS
• High Flow 6″ connection
• Different plate size
• Additional diaphragm pump on sluice pan
• Electrical driven hydraulic pack
COMBINATION UNITS
• Slurry Skid
• Pump Skid
• Powder Dosing System
• Dual Vessel Cartridge Unit

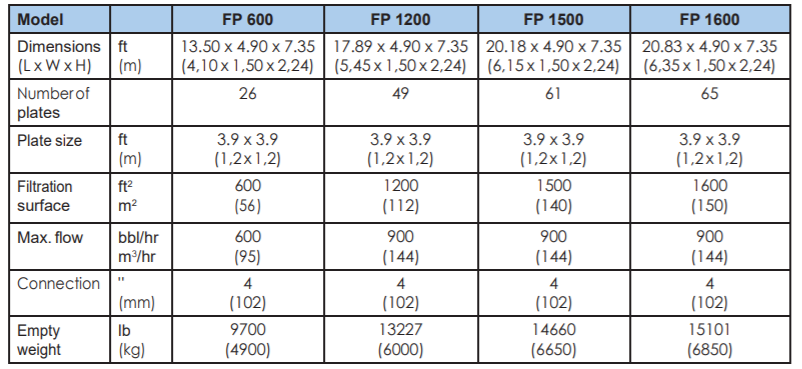

Filter Construction
Material Frame
• Carbon Steel
• Powder Coated
Design Code Frame
• EN 12079 / DNV 2.7-1
Material Plates
• Polypropylene
Others on request
Lifting
• Hoisting slings (certified) and forklift
pockets
Inlet andOutlet
• 4″ Union fig. 100 male/female
Dump Connection
• 4″Butterflyvalve,castironbody, SS disc
.
Max.WorkingPressure
•101.5psi(7bar) @ 113°F (45°C)
Max.RecommendedFlow
• 600 – 1800 bbl/hr (95 – 287 m3/hr) Otheroptions available on request
Max.WorkingTemperature
• 158°F (70°C) for polypropylene plates @ 72.5psi(5bar)
