Stackable Combination Unit

COMPLET SOLUTION FILTRATION SKID

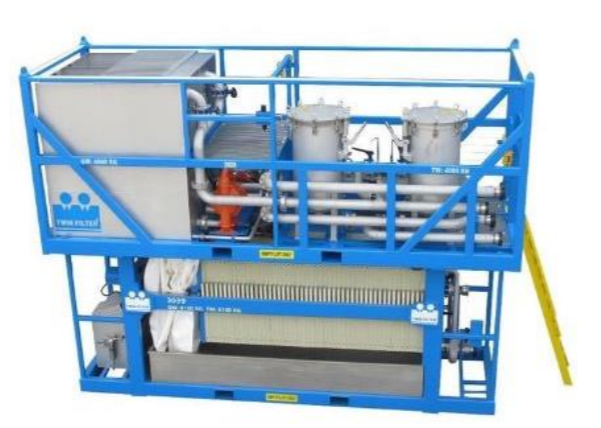

Basic Wells Twin filter offers a complete solution stackable filtration skid. The unit consists of a pre-coat and dosing SLURRY SKID and a DUAL VESSEL CARTRIDGE UNIT this unit can be placed on our standard heavy duty FILTER PRESS. The complete skid can be used both onshore and offshore

The Skid is specially designed for the filtration of completion fluids, work over fluids, gravel pack fluids and waste water. The Skid can be supplied with all necessary auxiliaries tor run an efficient filtration job.

BENEFITS

• Small foot print both in storage as in operation.
• Connections SS316L with O-ring seal for easy and 100% leak-proof sealing.
• Available in high flow execution.
• Designed for offshore duty.
• Swing-bolts and nuts for quick opening.
• Certified hoisting slings liftings lugs and forklift pockets.
• Offshore DNV 2.7-1 certified/EN 12079 frame

APPLICATIONS

• Well Completion fluids
• Work over fluids
• Gravel pack fluids
• Waste water.

OPTIONS

• Other sizes f.e for FP1500
• High flow 6” connection.

COMBINATION UNITS

• Pump Skid
• Power Dosing System
